Y-boom ladder
The Y-Boom Ladder is a permanently mounted rescue ladder designed for floating piers and Y booms where safe and reliable exit from the water is required.
- Hot-dip galvanized steel construction
- Serrated anti-slip steps for secure footing
- Follows the vertical movement of the pier
- Reflectors guide users out of the water
- Ergonomic cast aluminum handle included
- Rescue sign included for clear identification
Built for long-term marine use, the ladder combines low-maintenance durability with clear rescue visibility in demanding waterfront environments.
Product overview

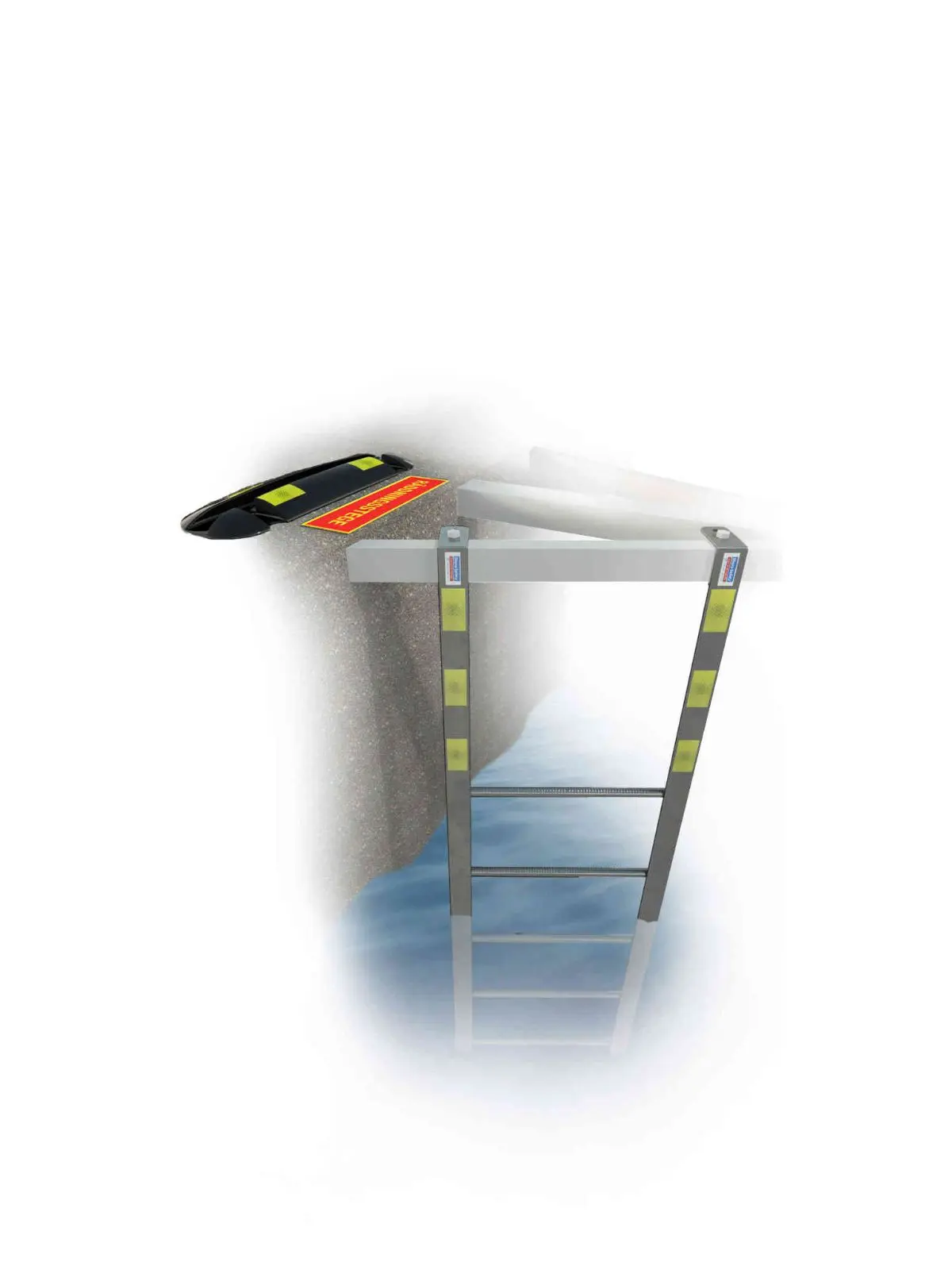

The Y-Boom Ladder is designed for floating docks, marinas and pier environments where a person must be able to climb out of the water quickly and safely. In these environments, a fixed escape point is essential because the freeboard, movement and side geometry of a floating installation can make self-rescue difficult without dedicated access equipment.
Unlike rigid solutions that may lose effective reach when water levels or pier height change, the Y Boom Ladder is mounted directly to the Y-boom and follows the movement of the floating structure. This helps maintain usable reach below the waterline and makes the ladder more dependable in real rescue situations.
Its serrated steps improve grip in wet conditions, while the slim placement keeps the ladder close at hand without obstructing normal use of the pier. Reflectors on the ladder, together with the reflective rescue sign and handle, improve visibility and make the rescue point easier to identify in darkness, rain and poor weather.
The product supports planning of safe waterfront environments and aligns with guidance for rescue access, visibility and ladder placement in marina and pier installations.
Additional information
| Width | 0,5 m |
|---|---|
| Length | 1,5 m |
| Height | – |
| Weight | – |
| Material: | Hot-dip galvanized steel |
| Color | – |
| Reflectors: | Guaranteed reflectivity for 10 years |
| Special | – |
Installation
The ladder should be installed where it is clearly visible from the side as well as from normal approach directions along the pier. Rescue ladders should normally be spaced 25–50 meters apart, depending on site conditions and overall rescue planning.
The ladder must extend at least 1 meter below the normal low-water level so that a person in the water can gain stable footing and climb out. Reflectors and the rescue sign should be positioned for maximum visibility in low light, rain and poor weather conditions.
Documentation
Assembly instructions
Y-boom ladder
Design Features

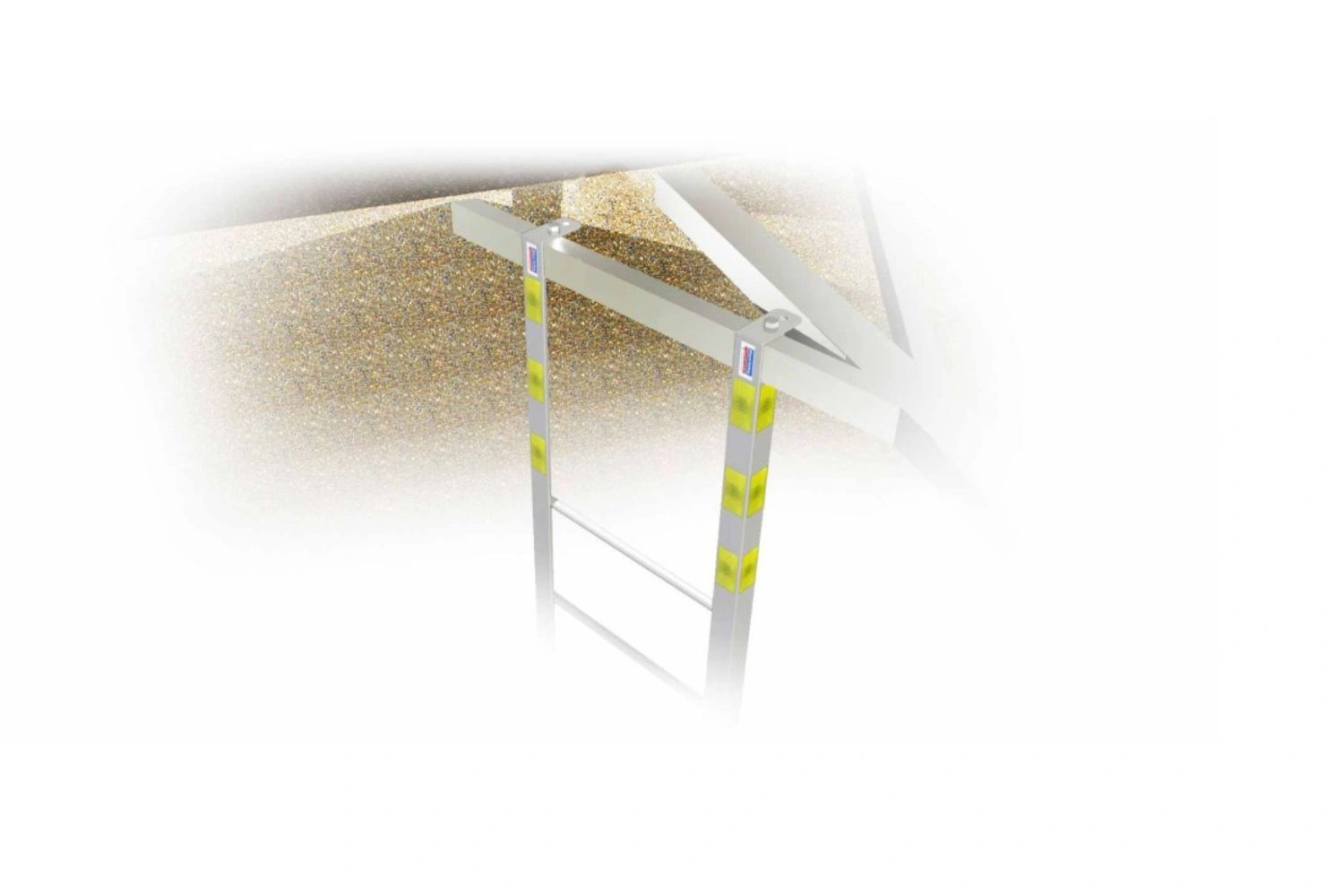

Out of the way
The placement ensures that the ladder is never in the way but always close at hand. The ladder also always reaches below the water surface, making it possible to climb up, since it follows the floating pier.

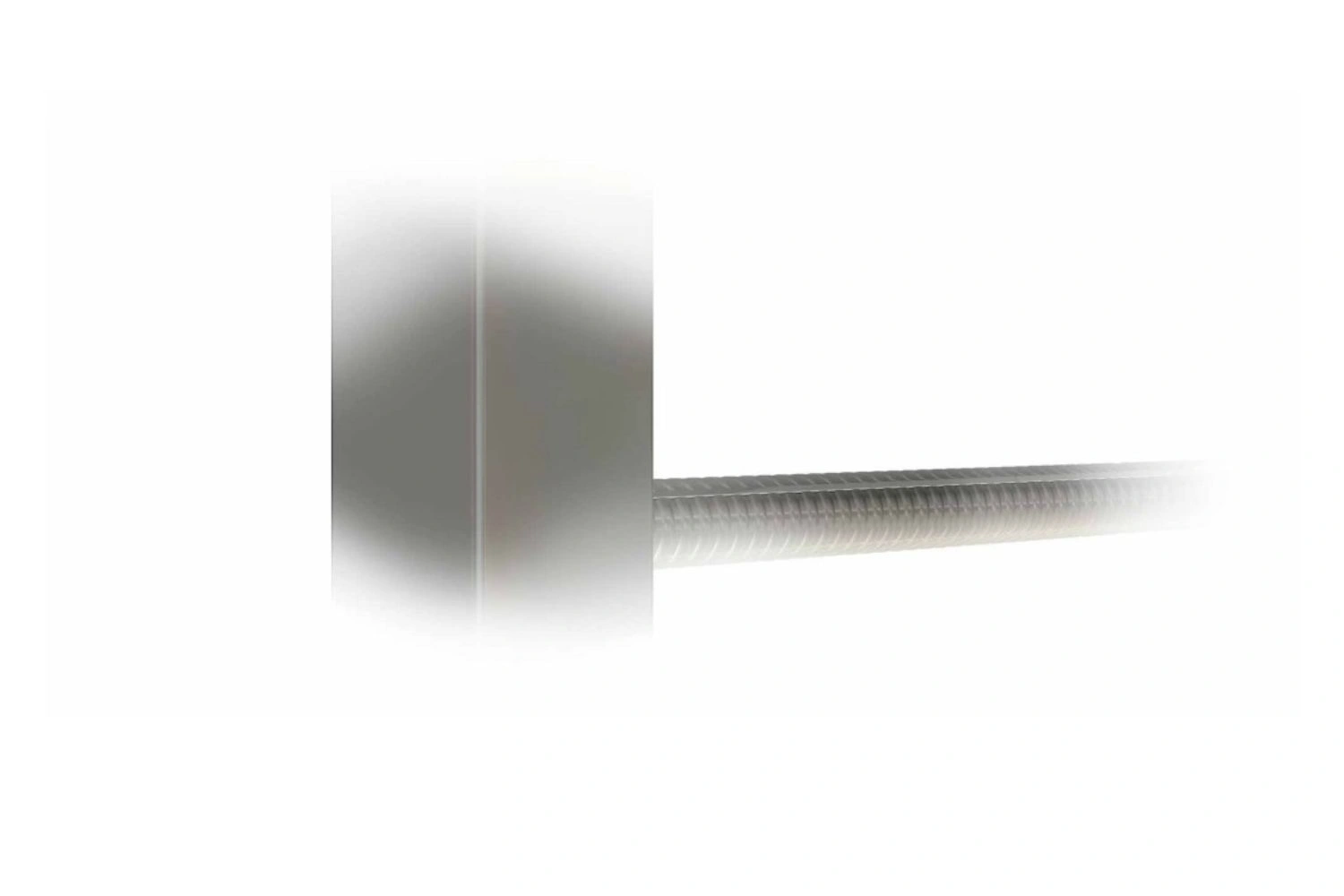

Long service life
Hot-dip galvanized construction with serrated steps.

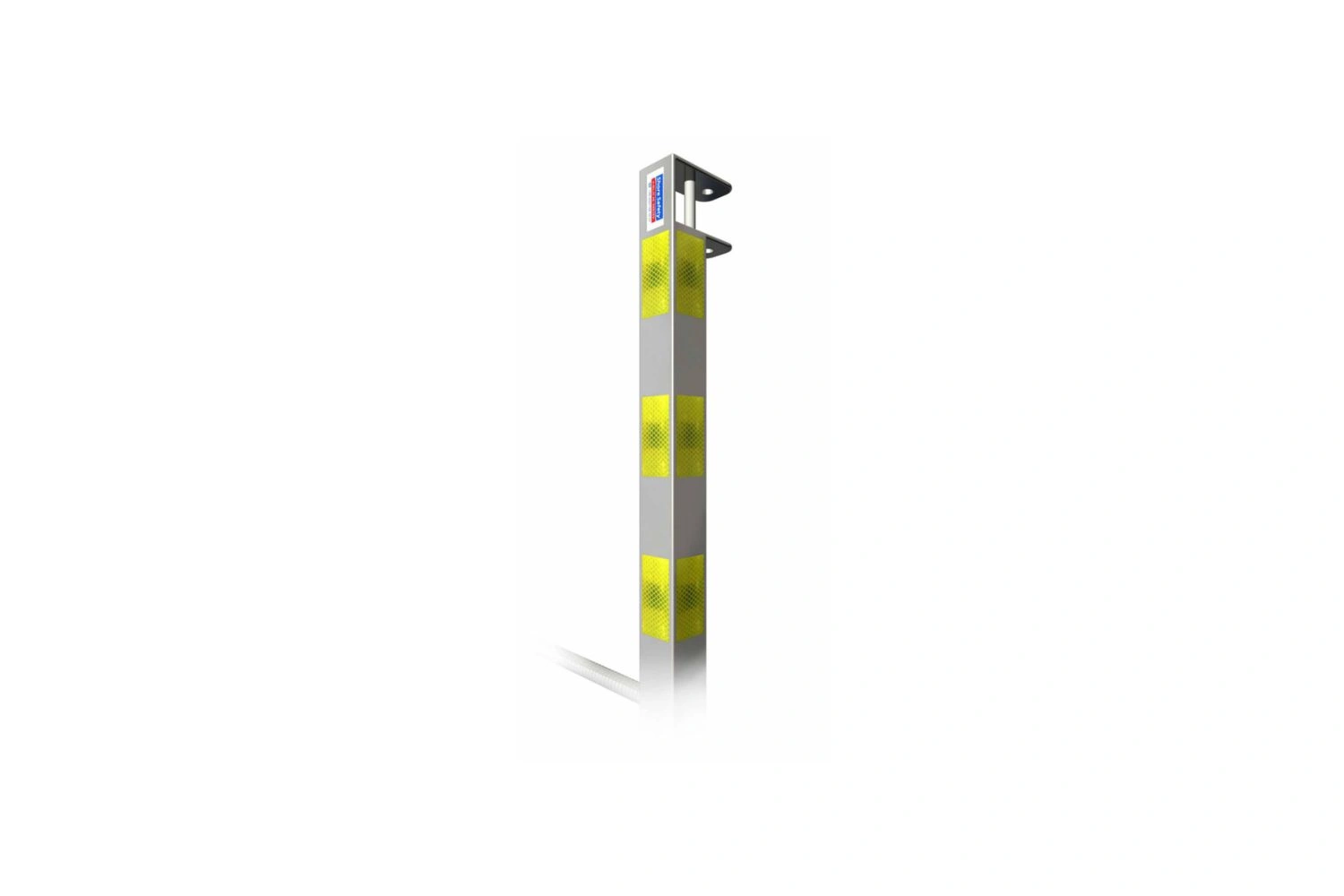

Rescue-marked
Reflectors on the ladder show the way out of the water. The sign and handle are also equipped with reflectors to clearly mark where the ladder is located..
Related products
About Shore safety
SWEDISH HANDCRAFTED QUALITY FOR DECADES
Quality
Built for real conditions, not just specifications.
With decades of experience in waterside safety, our equipment is designed, tested, and manufactured in Sweden to perform where it matters most. Every product meets strict MSB requirements and is made to deliver reliable, long-term safety in demanding environments.
Warranty
Designed to last — and backed accordingly.
Our lifesaving equipment is engineered for durability, dependable performance, and minimal maintenance throughout its lifecycle. Tested under Nordic conditions, each product is built for long service life and consistent function, so you can trust it to be ready when needed.
Shipping
From our facility to yours — safely and efficiently.
All equipment is shipped directly from Sweden through trusted logistics partners. This ensures reliable delivery, consistent quality control, and predictable lead times, so products arrive secure, on time, and ready for installation.
FAQ
Commonly asked question regarding Y-boom ladder
Answers to common questions regarding materials, installation, durability, and regulatory considerations for waterfront rescue Y-boom ladders.
Have any questions?
What is the purpose of the Y-Boom Ladder?
What materials are used in the Y-Boom Ladder?
How is the ladder marked for visibility?
How should the Y-Boom Ladder be installed?
